MX West Gym Stairs — Construction Drawings

Original drawing set

Full-resolution originals: the page uses smaller preview images for fast loading. Clicking a drawing now opens the original uploaded JPG at its full native resolution (2048 pixels wide). Use your browser zoom controls after opening it.

These sheets provide useful historical and maintenance context for the west stair assembly, the building addition, nearby structural framing and related systems. Click any image to open a larger copy.

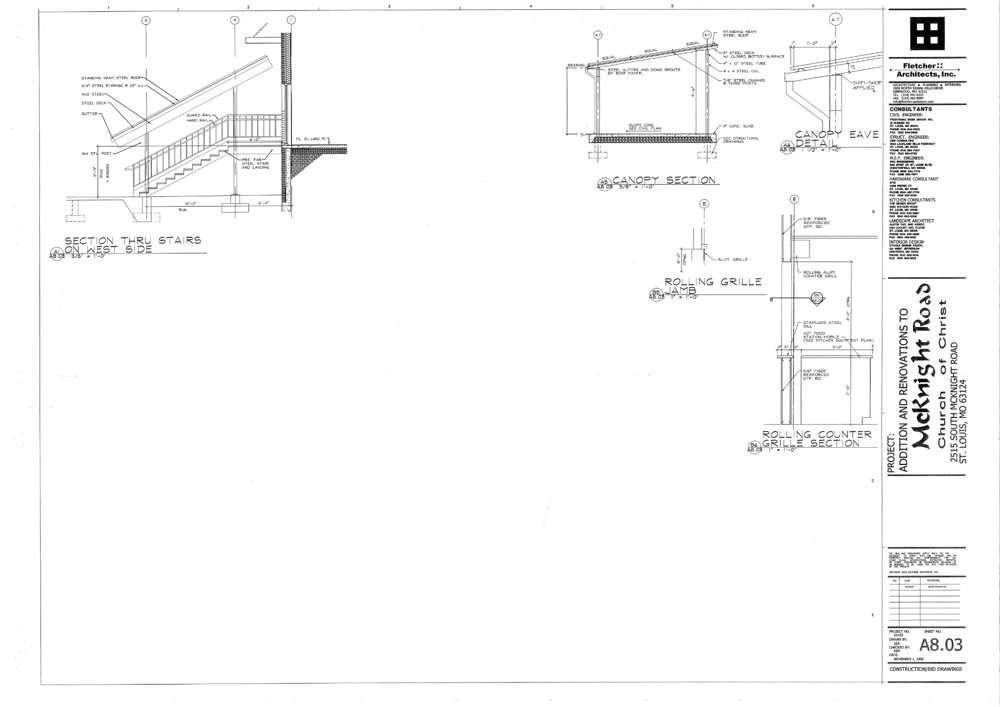

Sheet A8.03 stair and canopy details — **Sheet A8.03** — Stair and canopy details. This is the most directly relevant sheet because it includes a section through the west-side stairs.

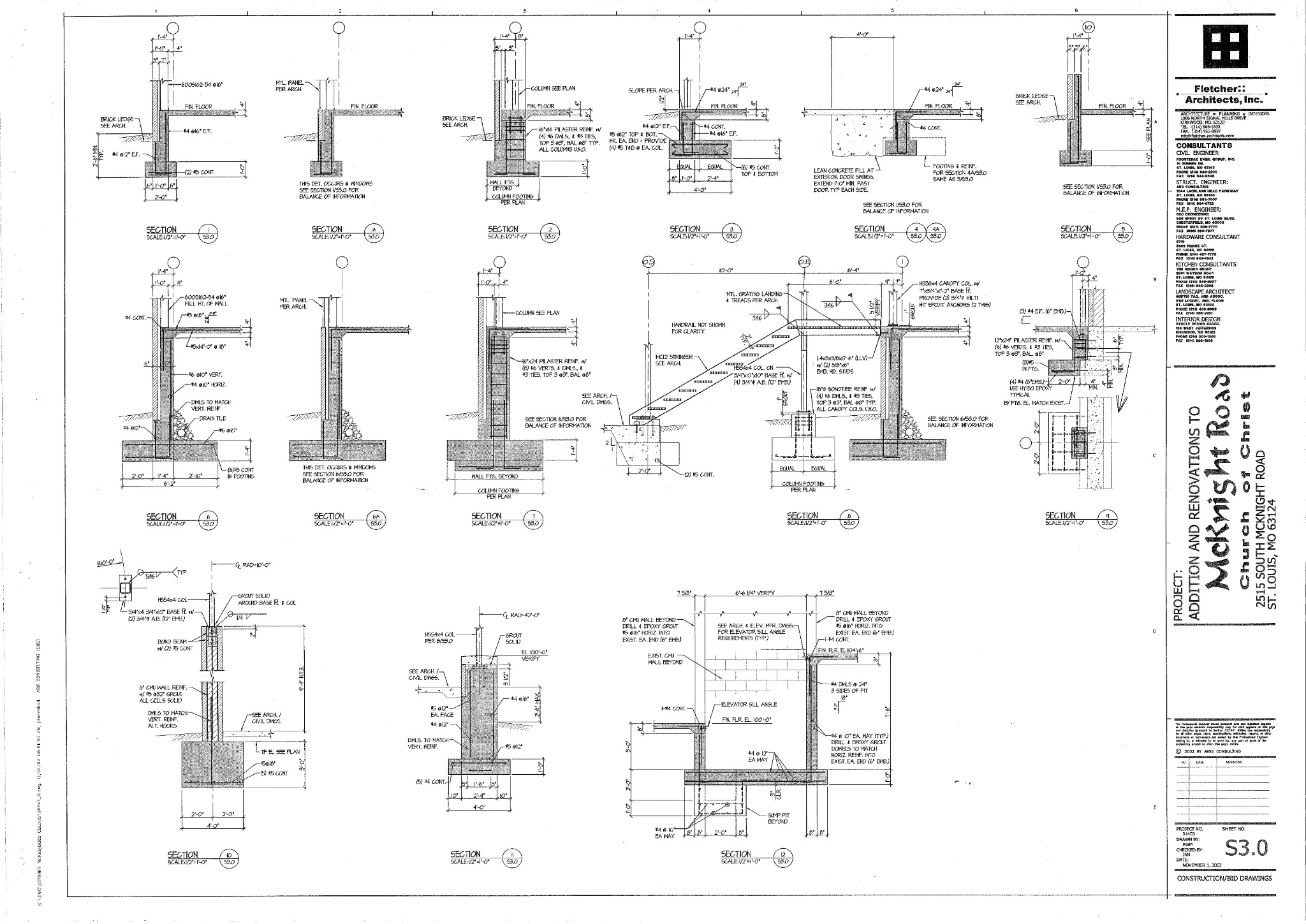

Sheet S3.0 structural sections — **Sheet S3.0** — Structural sections, including stair/landing support details and foundation conditions.

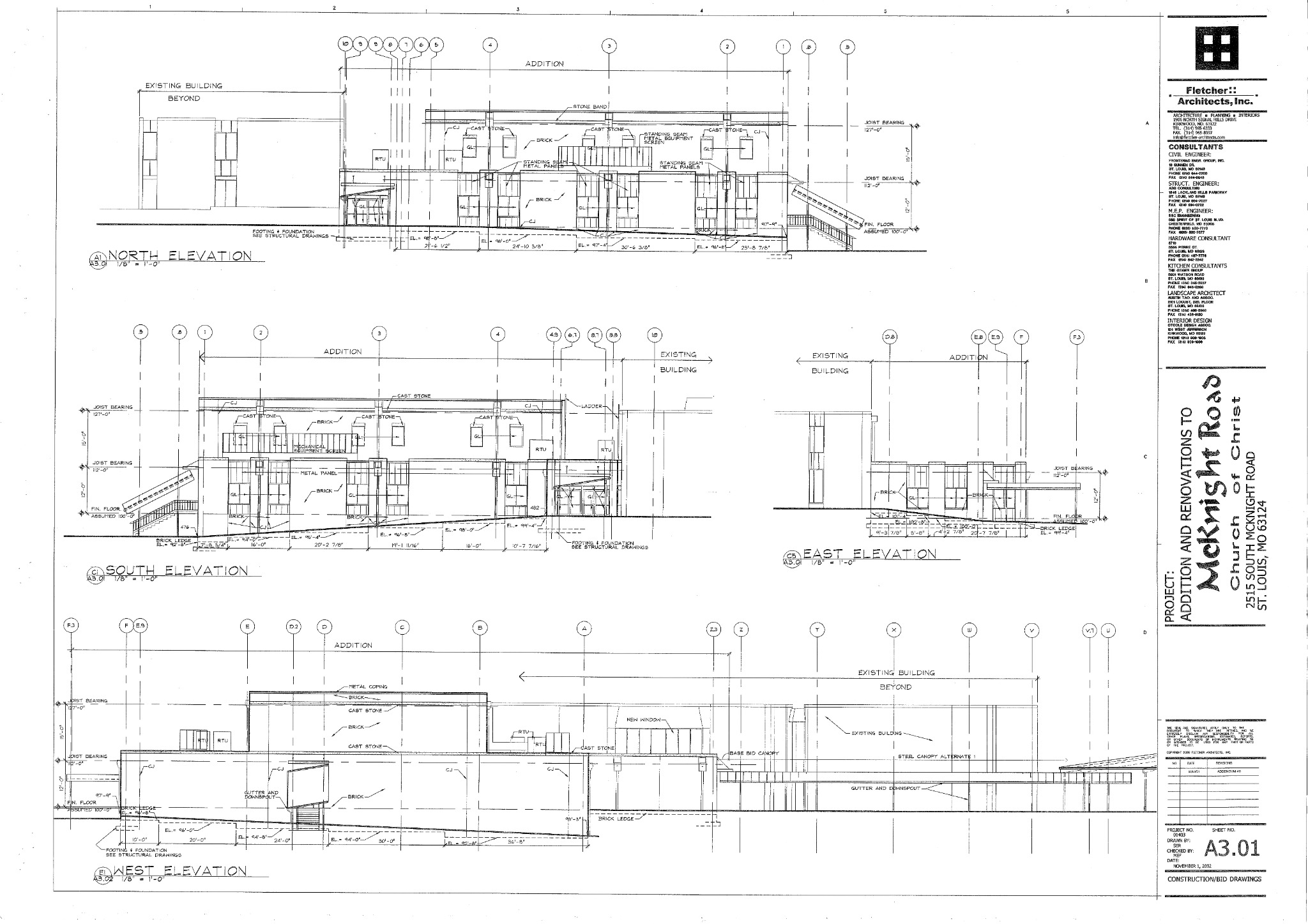

Sheet A3.01 building elevations — **Sheet A3.01** — Building elevations showing the addition and the exterior stair relationship to the church.

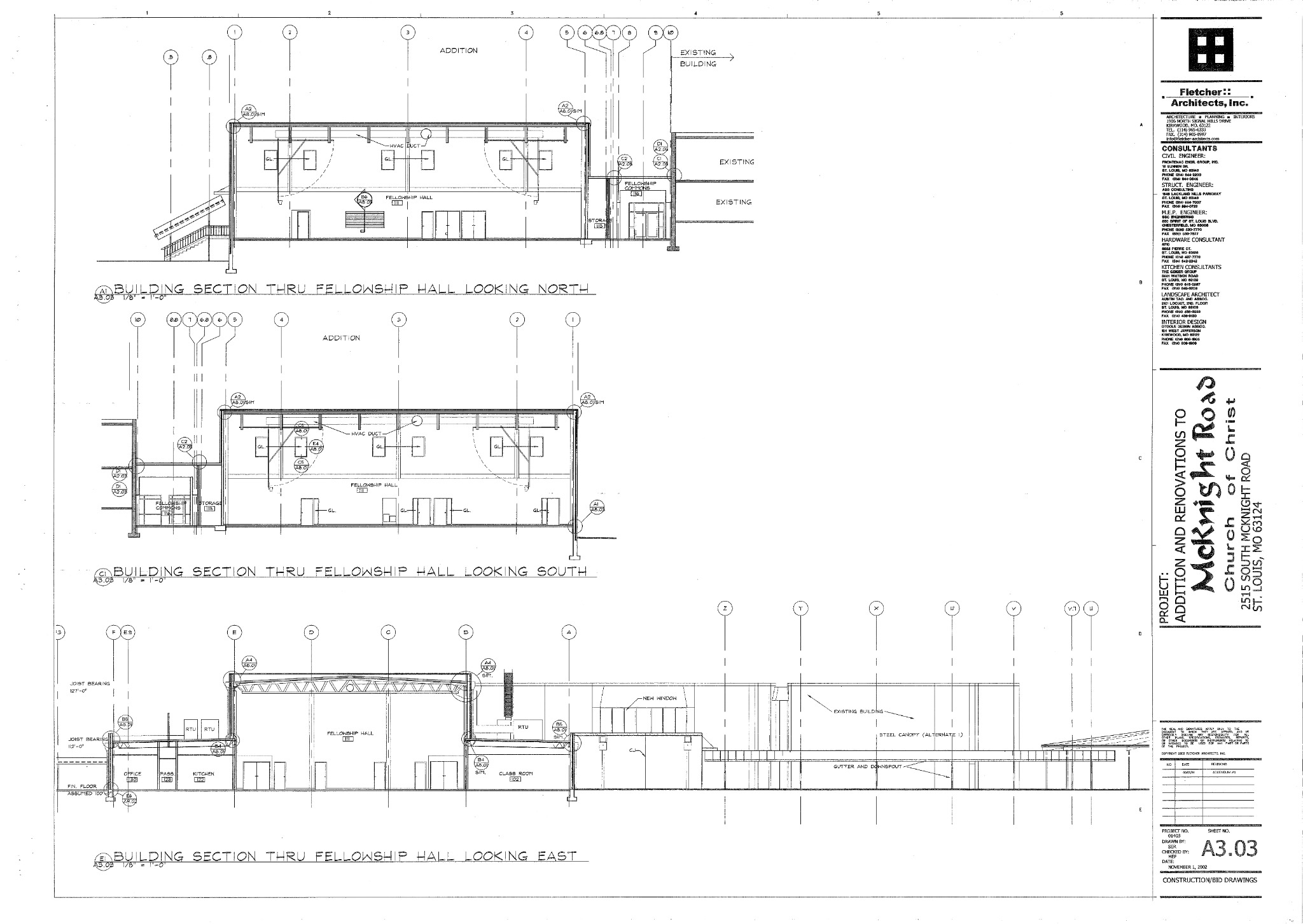

Sheet A3.03 building sections — **Sheet A3.03** — Building sections through Fellowship Hall and adjacent portions of the addition.

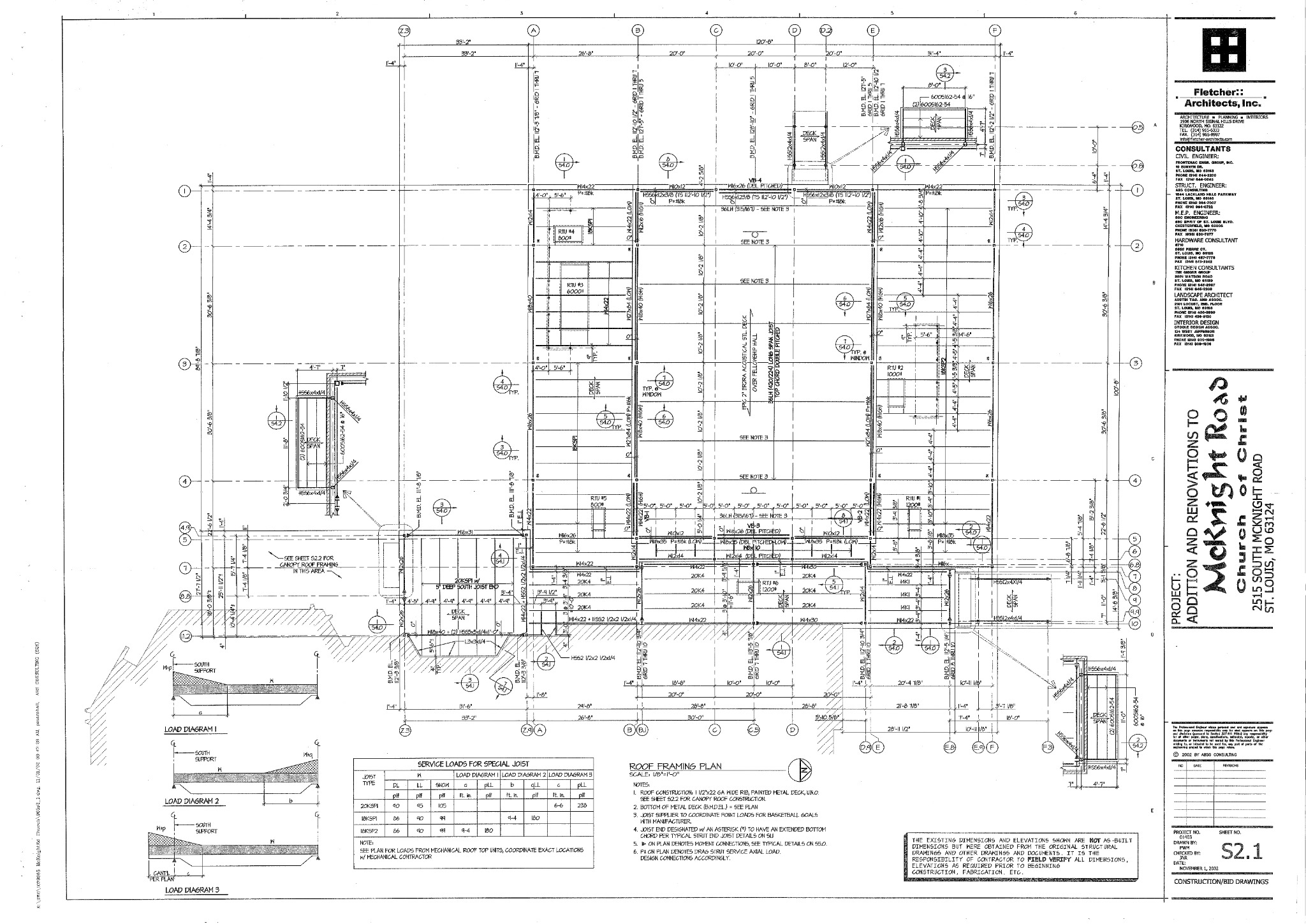

Sheet S2.1 roof framing plan — **Sheet S2.1** — Roof framing plan showing the structural grid and framing around the addition.

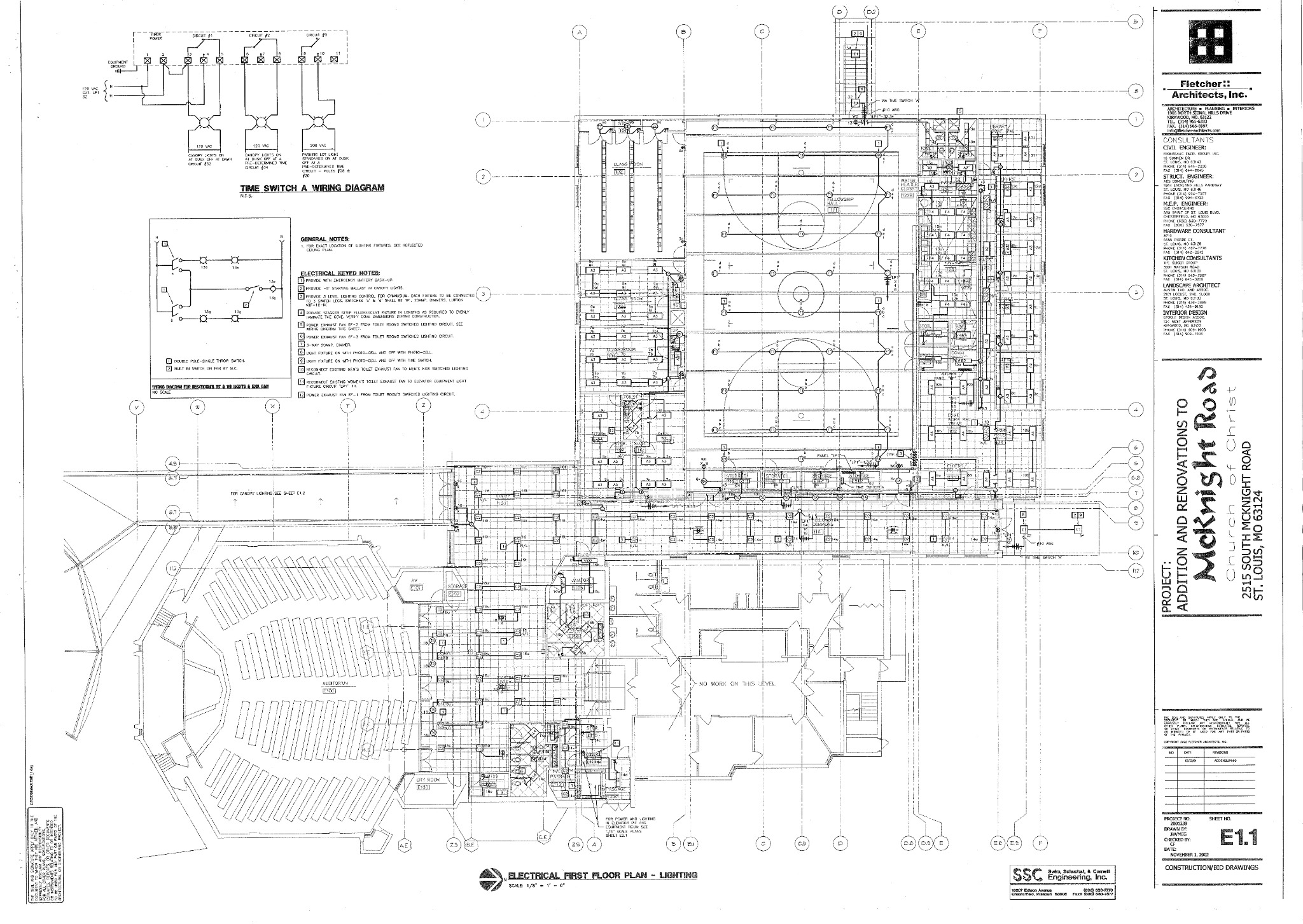

Sheet E1.1 electrical first floor lighting plan — **Sheet E1.1** — Electrical first-floor lighting plan for the addition and surrounding areas.

Reference only: field conditions may differ from the original construction documents. Dimensions and structural details should be verified in the field before any future repair or modification work.
